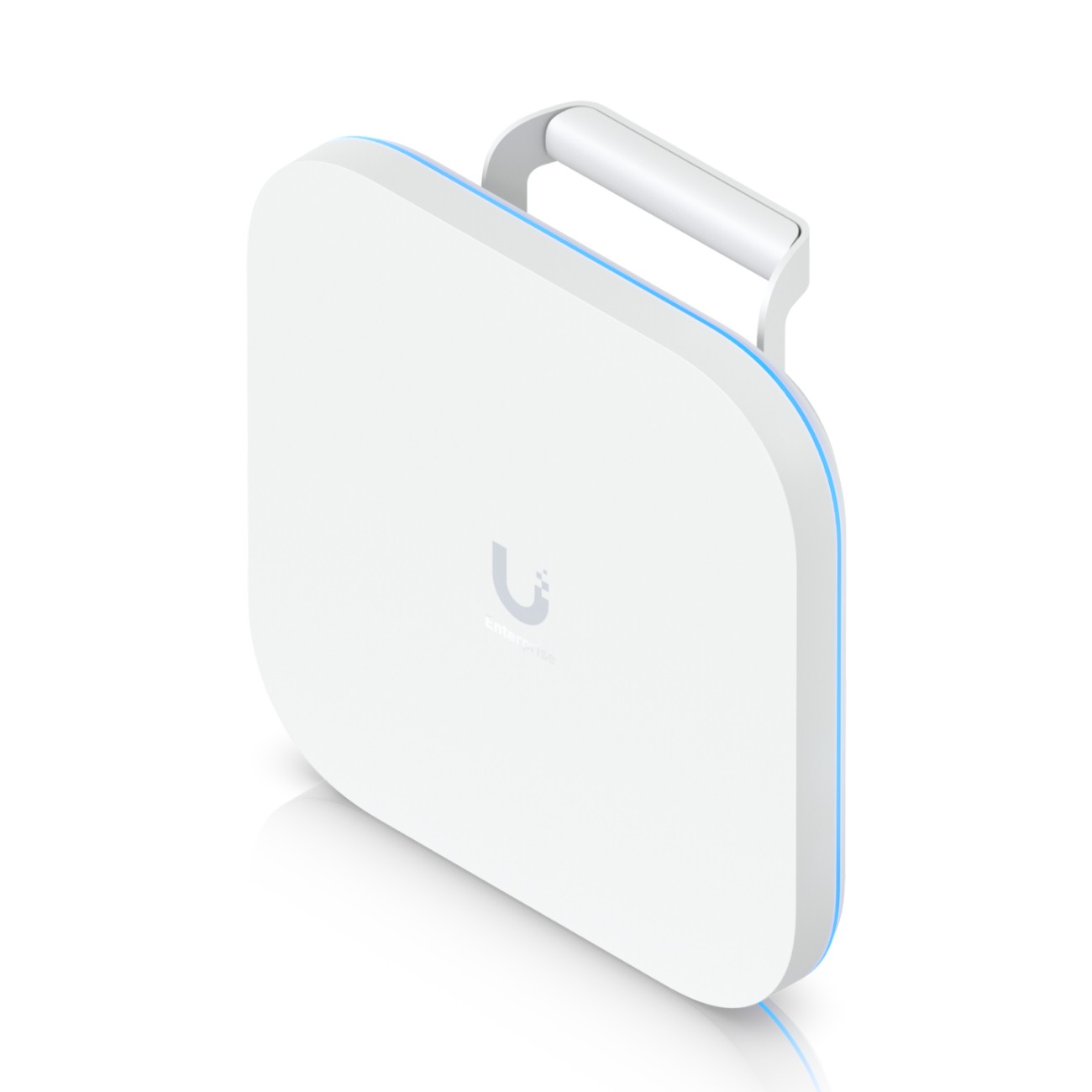

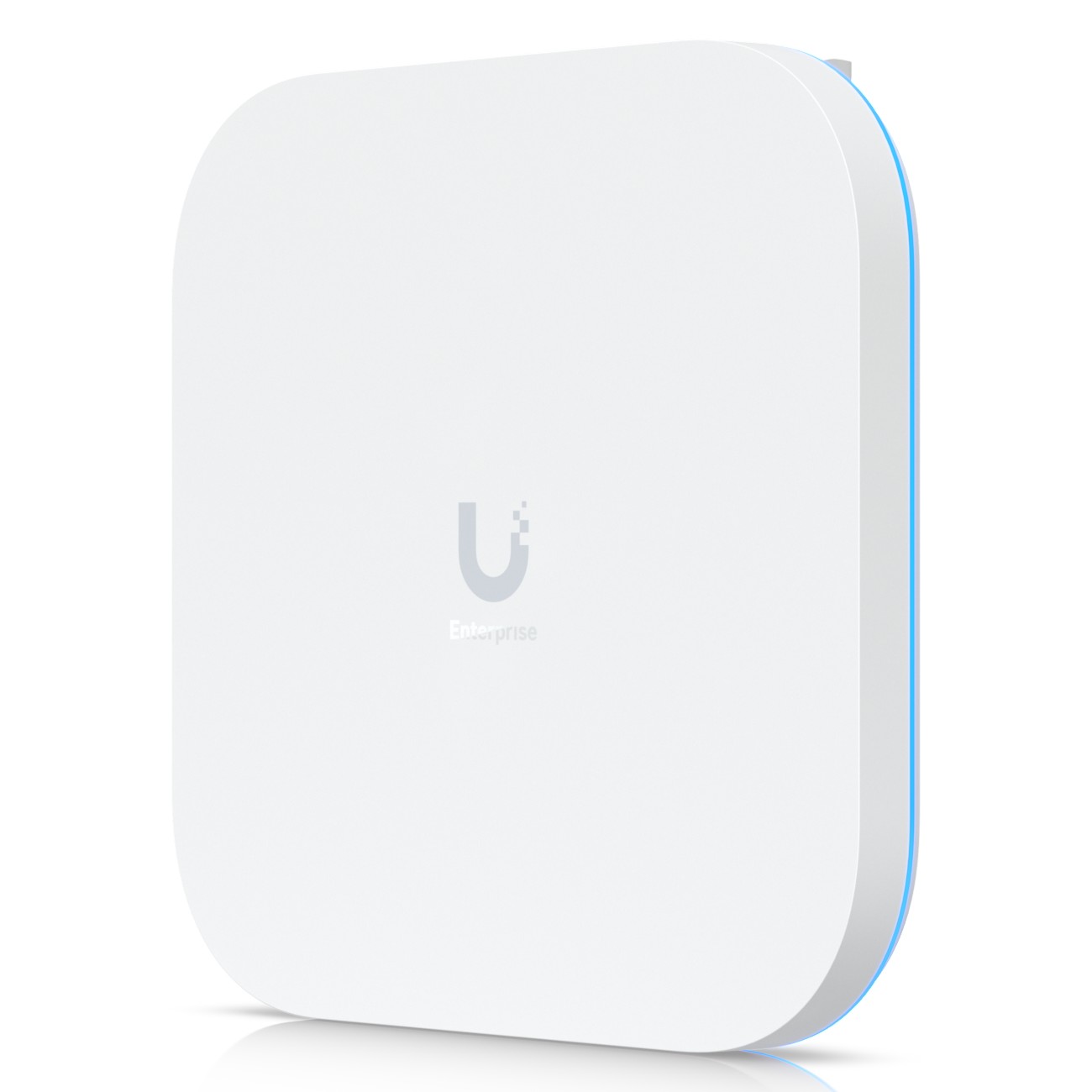

Ubiquiti E7-Campus - WiFi Access Point 7 For Large Facilities
Built for campuses, educational institutions and office complexes - the Ubiquiti E7-Campus is a WiFi 7 access point that is not afraid of heavy loads. It supports more than 1,000 devices simultaneously and provides coverage over 465 m². With 10 GbE uplink, built-in directional antennas and UniFi Network support, it's an access point that you can fully customize to your network needs.
WiFi 7 - More Bandwidth
The Ubiquiti E7-Campus operates on WiFi 7 (802.11be), supporting 2.4 GHz and 5 GHz bands with maximum speeds of up to 688 Mbps and 8.6 Gbps, respectively. The device uses 10 spatial streams, which increases the efficiency of working with multiple users simultaneously. With this solution, it significantly outperforms WiFi 6 access points such as the U6-Pro and UAP-AC-PRO.
Directional Antenna - Signal Focusing
The internal directional antennas used, with up to 12 dBi gain, allow efficient coverage of a specific space - without wasting energy on a scattered signal. This solution is particularly well suited for outdoor areas or long corridors. The beamwidth is as wide as 100° x 55°, making it easy to precisely place access points on campus.
Uplink 10 GbE - Network Performance Without Bottlenecks

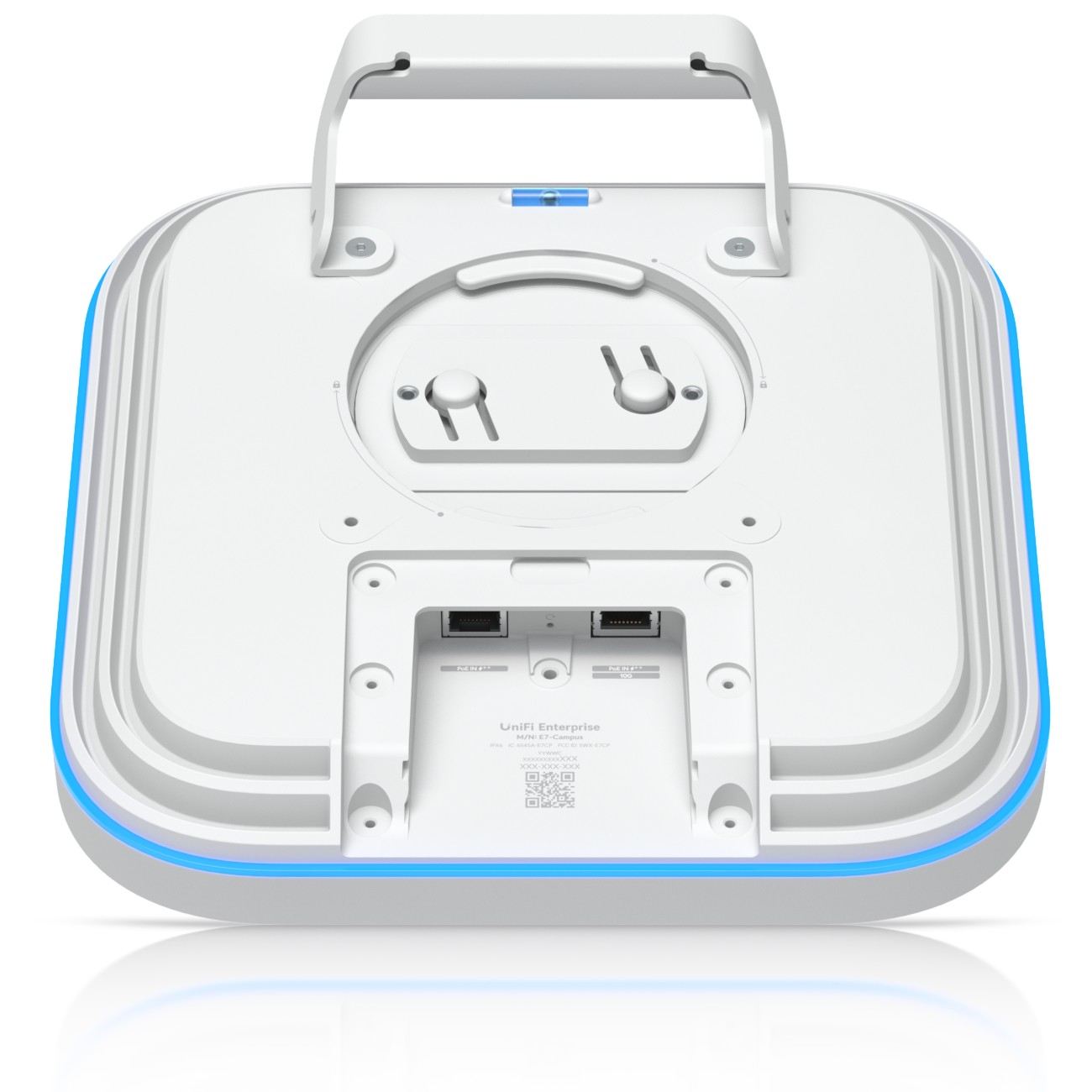

The access point is equipped with two Ethernet ports - 10 GbE and 1 GbE, so you can use the full capabilities of WiFi 7 without losing bandwidth. Such a connection eliminates latency and enables efficient transmission of large amounts of data. In UniFi-based networks, such an uplink significantly increases the efficiency of the entire infrastructure.
Resistance and Installation - For Outdoor Applications.

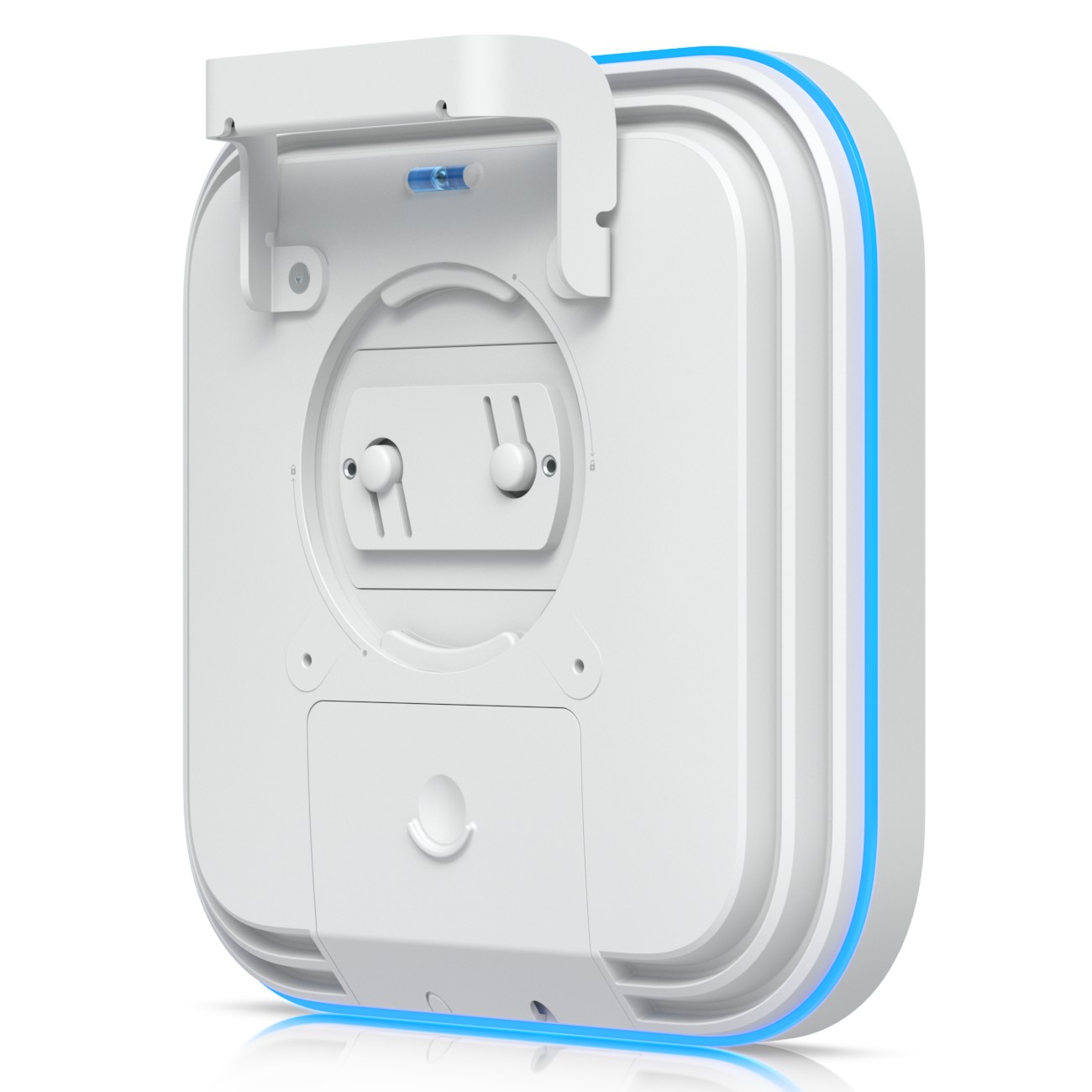

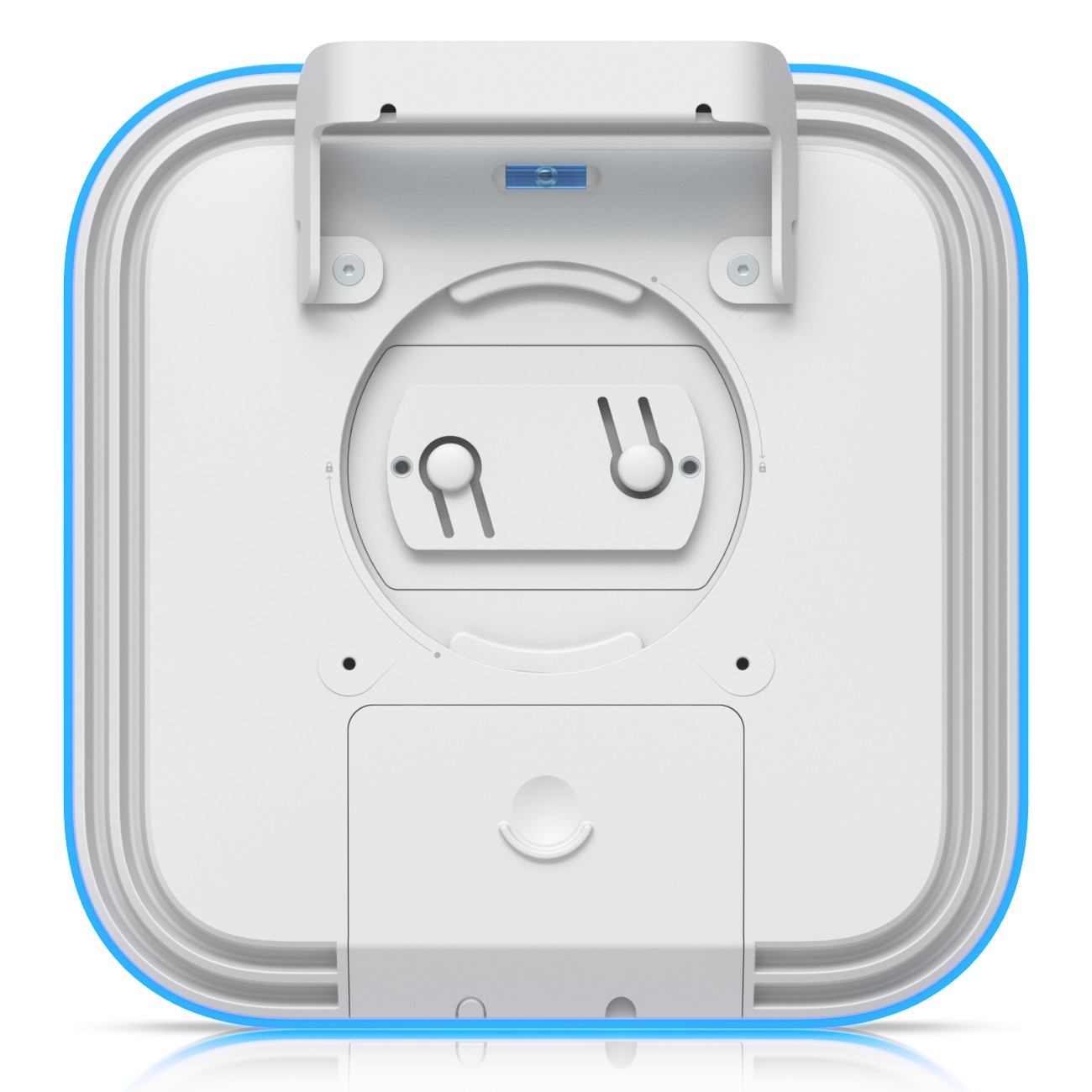

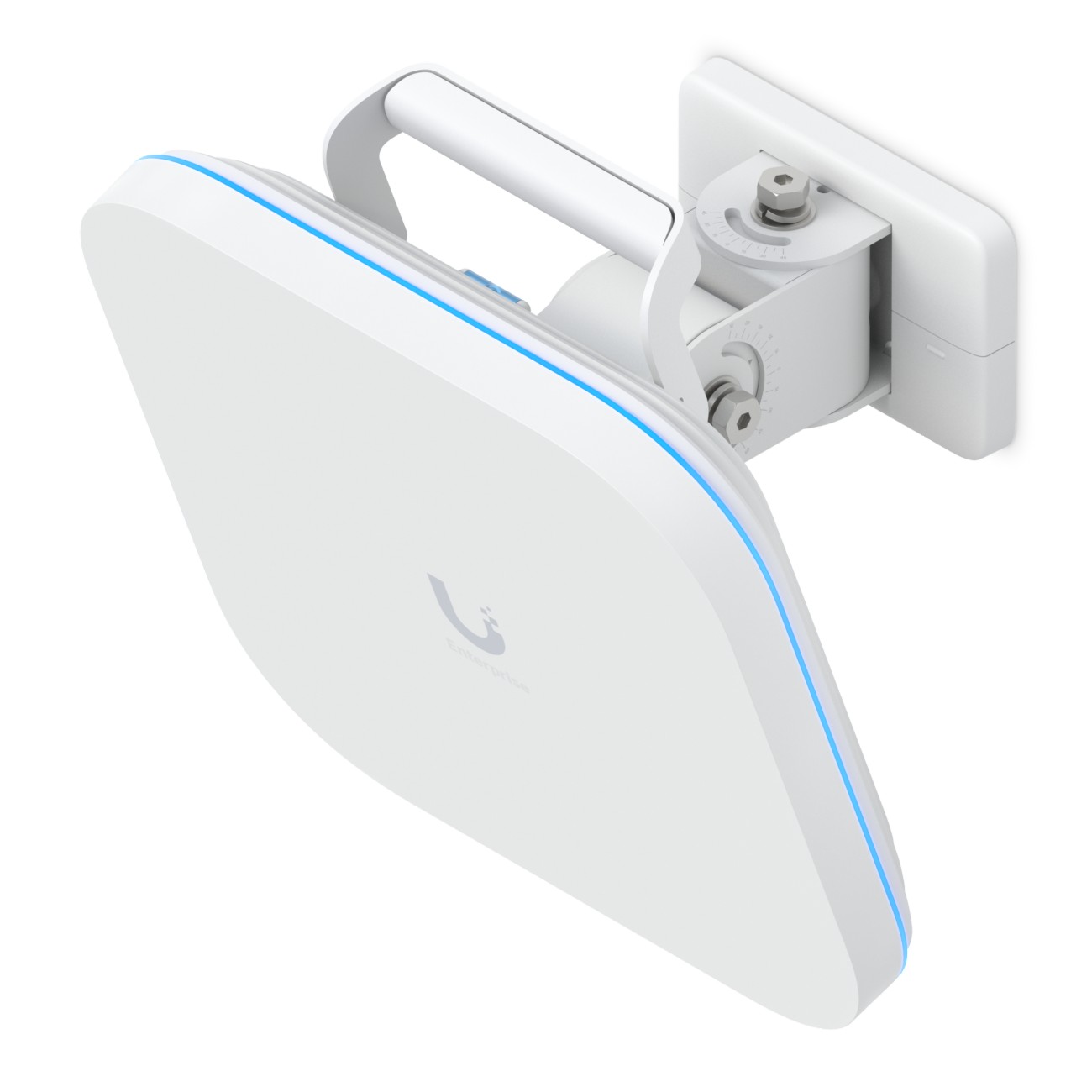

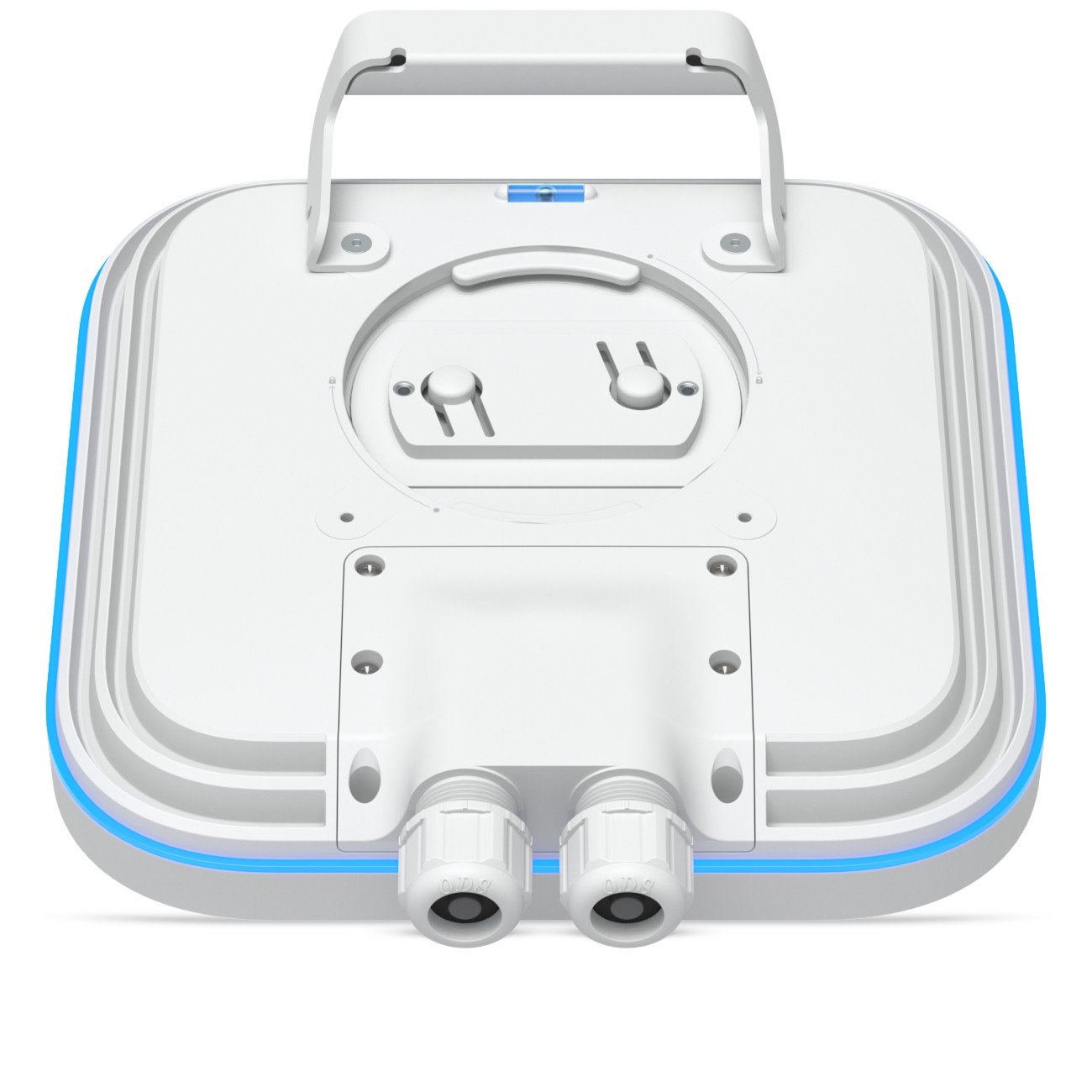

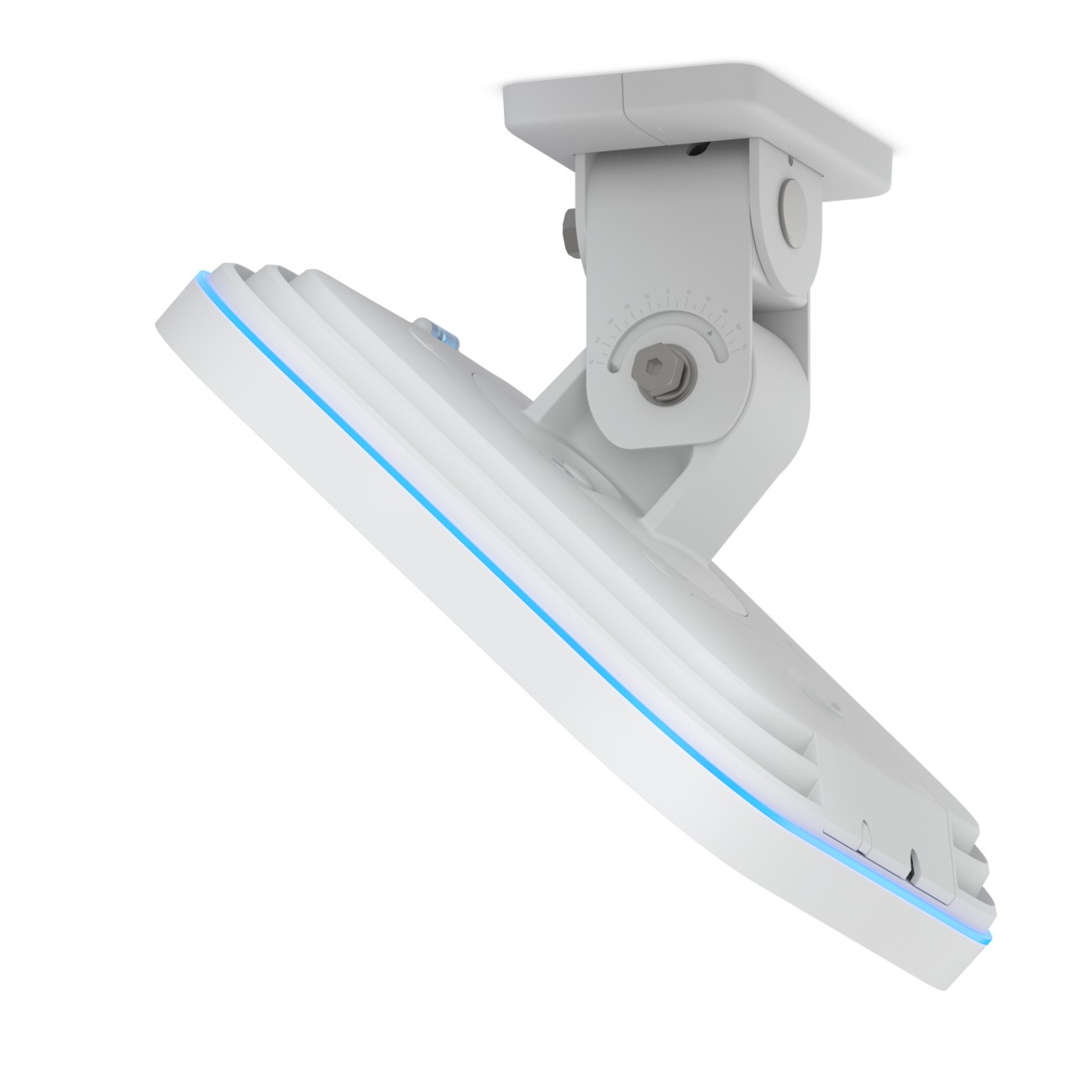

The Ubiquiti E7-Campus is IPX6 rated, which can be upgraded to IP67 with a kit that includes a sealing cover. The UV-resistant aluminum and polycarbonate housing ensures durability even in harsh weather conditions. Mounting on a wall, mast or VESA mount gives full configuration flexibility.
Tekniset tiedot
| Suurin tiedonsiirtonopeus | 11500 |
|---|
| Korkeus | 250 |
|---|
| Antennityyppi | Sisäinen |
|---|
| Leveys | 250 |
|---|
| Syvyys | 45,5 |
|---|
| Tuotteen väri | Valkoinen |
|---|
| Verkkostandardit | Ieee 802 11be |
|---|
| Antenna gain level (max) | 12 |
|---|
| 5 GHz | Kyllä |
|---|
| Ethernet LAN (RJ-45) -portit | 2.0000 |
|---|
| Sertifiointi | FCC, IC
US/CA |
|---|
| Power over Ethernet (PoE) | Kyllä |
|---|
| Security algorithms | Ppsk, tls |
|---|
| 6 GHz | Kyllä |
|---|
| Kotelon materiaali | Polykarbonaatti (PC) |
|---|
| Antennien määrä | 1.0000 |
|---|
| Suojausluokka (IP-koodi) | Ipx6 ip67 |
|---|
| Placement | Ceiling, pole, wall |
|---|
| Mobile operating systems supported | Android, ios |
|---|
| Tehonkulutus (maks.) | 44 |
|---|
| Paino | 2200 |
|---|
| Antennin suuntatyyppi | Directional |
|---|
| Band steering | Kyllä |
|---|
| Vaatimustenmukaisuustodistukset | National Defense Authorization Act (NDAA) |
|---|
| Coverage area | 465.0000 square meter |
|---|
| Dynamic Frequency Selection (DFS) | Kyllä |
|---|
| Fast roaming | Kyllä |
|---|
| LED-merkkivalot | Kyllä |
|---|
| MIMO | Kyllä |
|---|
| MIMO type | Multi User MIMO |
|---|
| Maximum Tx power (2.4 GHz) | 23.0000 |
|---|
| Maximum data transfer rate (2.4 GHz) | 688.0000 |
|---|
| Maximum data transfer rate (5 GHz) | 8600.0000 megabit per second |
|---|
| Maximum data transfer rate (6 GHz) | 11500.0000 megabit per second |
|---|
| Käyttöympäristön suhteellinen kosteus (H-H) | 5 - 95% |
|---|
| Käyttölämpötila (T-T) | -30 - 60 °C |
|---|
| Tuettu PoE-tyyppi | PoE++ (4PPoE) |
|---|
| Rate limiting | Kyllä |
|---|
| Spatial streams | 10 |
|---|
| Wireless meshing | Kyllä |
|---|
