Mikrotik Routerboard RBmAPL 2nD mAP lite
RBmAPL 2nD mAP lite routerboard is the smallest wireless access point and router from MikroTik. This routerboard has dimensions slightly larger than a matchbox. A specially adapted Ethernet port has been used to give the device the slimmest possible appearance and compact shape.
Antennas with 1.5 dBi gain
Access point operates in 2.4 GHz band in 2x2 MIMO technology. It has been equipped with antennas with 1.5 dBi gain. The mAP lite router is powered via micro USB port or passive PoE 5-60 V. The device is also compatible with PoE 802.3af/at standards. It can work as a router and client device.
mAP lite works under control of Mikrotik RouterOS level 4 system.
Take it with you.

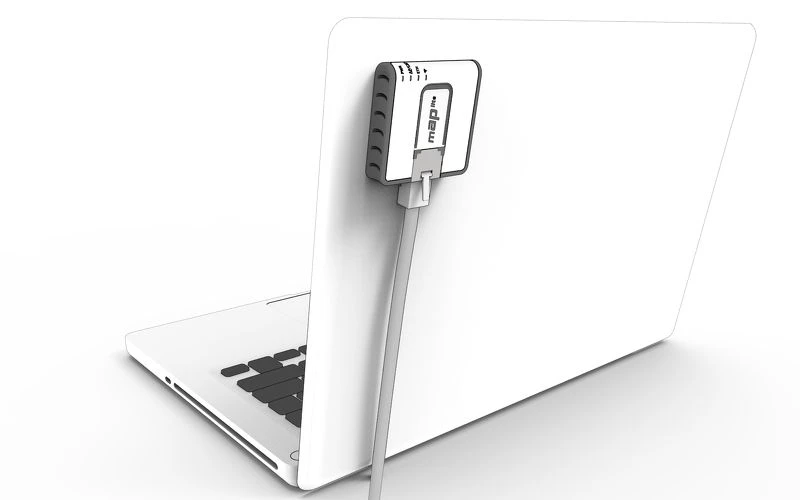

You can use it as a wireless router to make the Internet available to other devices or as a client device to improve the signal range of your laptop. mAP lite is equipped with a magnet, so you can place it on any metal surface without the need to mount it, you will also find a metal plate with double-sided tape included.
----------------
LAN standard | Fast Ethernet 10/100Mb/s |
Number of LAN ports | 1x 10/100BaseTX (RJ45) |
Operating frequency | 2.4 GHz |
Wireless network standards | IEEE 802.11n |
Wireless network standards | IEEE 802.11g |
Wireless network standards | IEEE 802.11b |
2.4 GHz | Yes |
5 GHz | No |
AC adapter included | Yes |
Antenna gain level (max) | 1.5 |
Bandwidth | 2.4 |
Built-in processor | Yes |
DC-in jack | Yes |
Depth | 11 |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100 |
Flash memory | 16 |
Harmonized System (HS) code | 85176990 |
Height | 48 |
Internal | No |
Internal memory | 64 |
Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af,IEEE 802.3at |
Operating system installed | RouterOS |
Operating temperature (T-T) | -30 - 70 |
Power consumption (max) | 3.5 |
Power over Ethernet (PoE) | Yes |
Product colour | White |
Receiver sensitivity | 1MBit/s -96
11MBit/s -89
6MBit/s -93
54MBit/s -74
MCS0 -93
MCS7 -71 |
Type of device power supply | PoE 802.3af/at |
Type of device power supply | Passive PoE |
Width | 49 |
