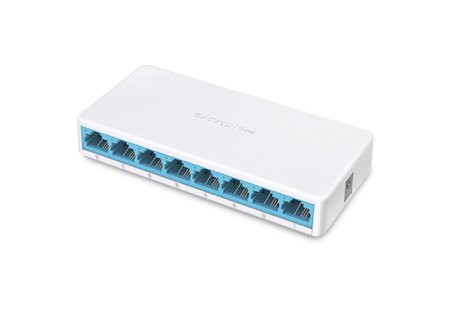

Mercusys MS108 switch
MS108 Switch from Mercusys is an ideal solution for small businesses and homes. It is equipped with 8 10/100 Mb/s ports with automatic connection speed negotiation. This switch is characterized by easy computer network expansion, compact size and plug and play installation (no configuration required).
Easy, nice, compact
If you are not a fan of switch configuration, MS108 is the perfect solution for you. With the plug and play function, all you need to do is connect the switch to your TV or computer using an Ethernet cable.
Once connected, you will automatically expand your wired network. No additional configuration is needed here. The MS108 also features an elegant and compact design.The switch is the size of a smartphone so it will not take up much space.You can easily find a convenient place for it at home or office. It also has no fan,s making it extremely quiet and unnoticeable.
Extended network? - No problem
The MS108 switch is equipped with eight 10/100Mbps ports, which means the possibility of fast expansion of the wired network. The switch works with most IP cameras, printers, computers, TVs and game consoles. Thanks to this feature the device is very versatile. It can work perfectly in an office, but also at home, apartment and even in a dorm.
Mercusys MS108 Features:
Mercusys MS108 Features:
- 8 RJ45 10/100Mbps ports (automatic negotiation of connection speed, automatic crossover - auto-MDI/MDIX)
- Easy extension of the wired network
- Compact size makes it easy to find a convenient location for the device
- Plug and play installation - no need to configure the device
----------------
| LAN standard | Fast Ethernet 10/100Mb/s |
| Number of LAN ports | 8x 10/100BaseTX (RJ45) |
| Number of PoE ports | No PoE ports |
| Number of WAN ports | Not applicable |
| Auto MDI/MDI-X | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Buffer size | 768 |
| Built-in modem | None |
| Cables included | AC |
| Certification | RoHS
CE |
| Depth | 60.2 |
| Height | 22 |
| Jumbo frames support | Yes |
| LED indicators | Power |
| Management | No |
| Manual | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Output current | 0.6 |
| Output voltage | 5 |
| Package depth | 80 |
| Package height | 57 |
| Package weight | 180 |
| Package width | 132 |
| Power over Ethernet (PoE) | No |
| Product colour | White |
| Quick start guide | Yes |
| Rack mounting | No |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Store-and-forward | Yes |
| Switch type | Managed |
| Switching capacity | 1.6 |
| Type of case | Plastic |
| Width | 127 |
