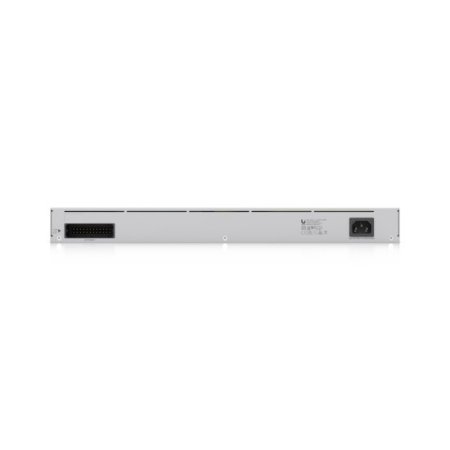

Switch - UBIQUITI UDM-PRO
UniFi Dream Machine Pro (UDM-Pro) is an all-in-one business network device. UDM-Pro integrates into all current and future UniFi controllers with a security gateway, 10G SFP+ WAN network, 8-port Gbps switch and commercially available 3.5-inch hard drives.
The most important features:
The most important features:
- Integrated 1U rack unit for small and medium-sized businesses
- Combines the new UniFi operating system with an 8-port switch and security gateway
- UniFi Protect NVR for video surveillance with ready to use HDD 3.5
- 8-port Gigabit switch with 1 Gbps RJ45 and 10G SFP + LAN
- Enterprise class IPS / IDS, DPI and AI Wi-Fi features
- Powered by a fast 1.7 GHz quad-core processor
Perfectly designed software
UDM Pro includes a UniFi network controller to manage UniFi switches and access points. You can also run UniFi Protect software to conveniently monitor and fully manage your camera surveillance system. The video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed with the UniFi Protect mobile application. Remote access gives you safe viewing of recordings stored privately on UDM Pro and not on a third-party server.
UDM Pro supports multiple redundancy options to ensure even better network performance:
UDM Pro supports multiple redundancy options to ensure even better network performance:
- Dual WAN with emergency switchover. Supports dual Internet/ISP connections with emergency switching: if the basic WAN connection fails, it will automatically switch to another WAN connection.
- LTE Emergency Switching Redundancy Supports the UniFi LTE device for automatic emergency switching to the LTE mobile network. If a wired WAN fails, it will automatically switch to UniFi LTE, keeping the network online.
- The UDM Pro supports our UPS emergency switching system. If the internal power supply fails, the proprietary USP RPS interface works to provide backup power.
----------------
| Number of LAN ports | 8x [10/100/1000M (RJ45)]
|
| Number of LAN ports | 1x [10G (SFP+)]
|
| Number of WAN ports | 1x 10/100/1000BaseTX (RJ45) |
| Number of WAN ports | 1x SFP+ (10G) |
| 10G support | Yes |
| AC input frequency | 50/60 |
| AC input voltage | 100 - 240 |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Built-in processor | Yes |
| Certification | CE, FCC, IC |
| DC input voltage | 12 |
| Depth | 285.6 |
| Flash memory | 16000 |
| Harmonized System (HS) code | 85176990 |
| Height | 43.7 |
| Internal memory | 4096 |
| LED indicators | Yes |
| Management | CLI - Command Line Interface |
| Management | Dedicated application |
| Management | By web browser |
| Number of power supply units | 1 |
| Power consumption (max) | 33 |
| Power supply included | Yes |
| Processor frequency | 1700 |
| Processor model | ARM Cortex-A57 |
| Product colour | White |
| Rack mounting | Yes |
| Redundant power supply (RPS) support | Yes |
| SFP+ module slots quantity | 2 |
| Switch type | Managed |
| Throughput | 3.5 |
| Type of case | Rack (1U) |
| Weight | 3.9 |
| Width | 442.4 |
