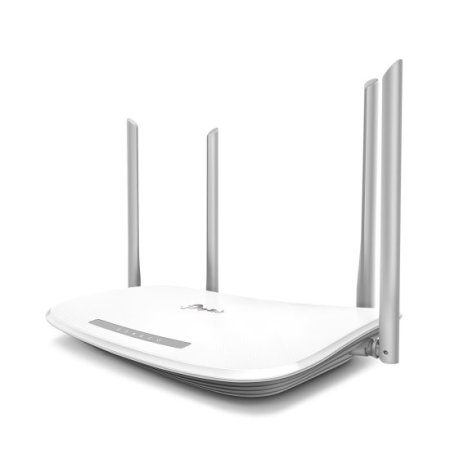

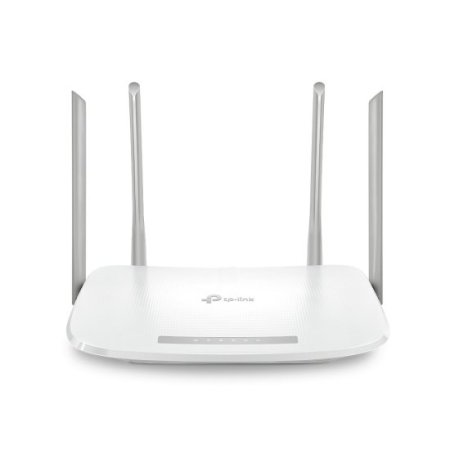

TP-Link TL-EC220-G5 2-Band WiFi Router
The TP-Link EC220-G5 is a dual-band wireless gigabit router. The 5th generation Wi-Fi upgrade delivers incredible wireless speeds of up to 1.2Gbps in the 2.4GHz and 5GHz bands, easily delivering the lowest latency for online gaming, HD content streaming and fast downloads.
Reliable and long-range Wi-Fi signal
The innovative Wi-Fi antenna design ensures maximum range with the least amount of loss. Four external antennas (2 at 2.4GHz and 2 at 5GHz), cover a wide range and give all your devices the best signal and data transfer speeds.
Extensive customization options
TP-Link TL-EC220-G5 supports multiple SSIDs, so it is possible to create separate WLANs for different services, such as IPTV, Internet, or guest access. It is also great for controlling Internet access for children. You can easily create a blacklist using keywords, restricting access to malicious or unwanted sites.
Easy and quick setup with the Tether app
Free Tether app available for everyone! Download it today to your device with Android or iOS.
The perfect solution for ISPs
Support for the TR-069 protocol, which allows ISPs to remotely configure and manage end-user devices. This makes it easier to troubleshoot Internet configuration issues yourself.
Main advantages
Main advantages
- 5th generation Wi-Fi: 300 Mbps in the 2.4 GHz band 867 Mbps in the 5 GHz band.
- Easy remote management: The TR-069 protocol allows operators to configure and manage end-user devices fully remotely.
- IPv6: Internet Protocol version 6 compliance.
- IPTV: IGMP Proxy/Snooping, Bridge and Tag VLAN support for optimal IPTV service performance.

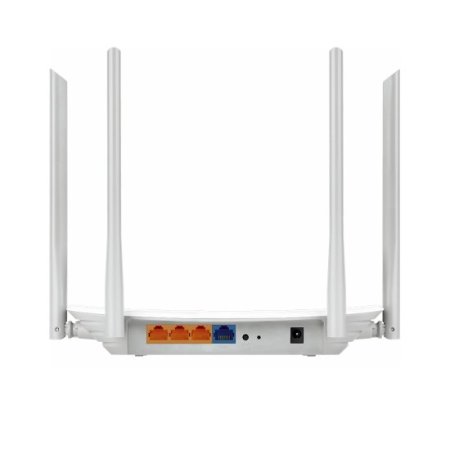

- Gigabit Ports: The ability to use 1000 Mbps WAN port and four 1000 Mbps LAN ports translates into high transmission speeds.
----------------
| 3G | No |
| 3G/4G USB modem compatibility | No |
| 4G | No |
| AC adapter included | Yes |
| Access Control List (ACL) | Yes |
| Antenna type | Internal & external |
| Antennas quantity | 4 |
| Bandwidth control | Yes |
| Cables included | LAN (RJ-45) |
| Certification | CE, RoHS |
| DHCP client | Yes |
| DHCP server | Yes |
| DMZ support | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 3 |
| Ethernet LAN data rates | 10,100,1000 |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet WAN | Yes |
| Firewall security | DoS, SPI Firewall, IP Address Filter, IP and MAC Address Binding |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Mobile network generation | 4G |
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11h,IEEE 802.11n |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Output current | 1 |
| Output voltage | 12 |
| Parental control | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Power source type | AC |
| Product colour | White |
| Product type | Tabletop router |
| Quality of Service (QoS) support | Yes |
| Quick installation guide | Yes |
| Schedule access | Yes |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| SIM card slot | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Transmit power | 20 - 23 |
| Universal Plug and Play (UPnP) | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac) |
| Windows operating systems supported | Yes |
