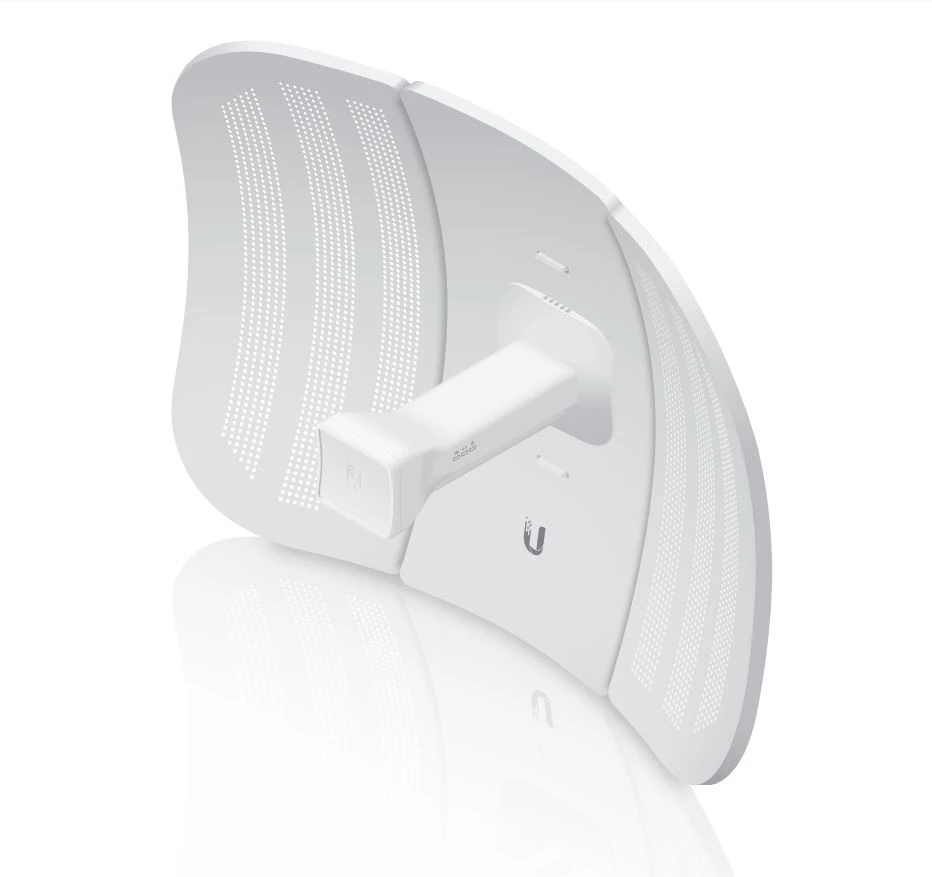

The Ubiquiti LiteBeam M5 23dBi LBE-M5-23 is the ultra-lightweight airMAX CPE.

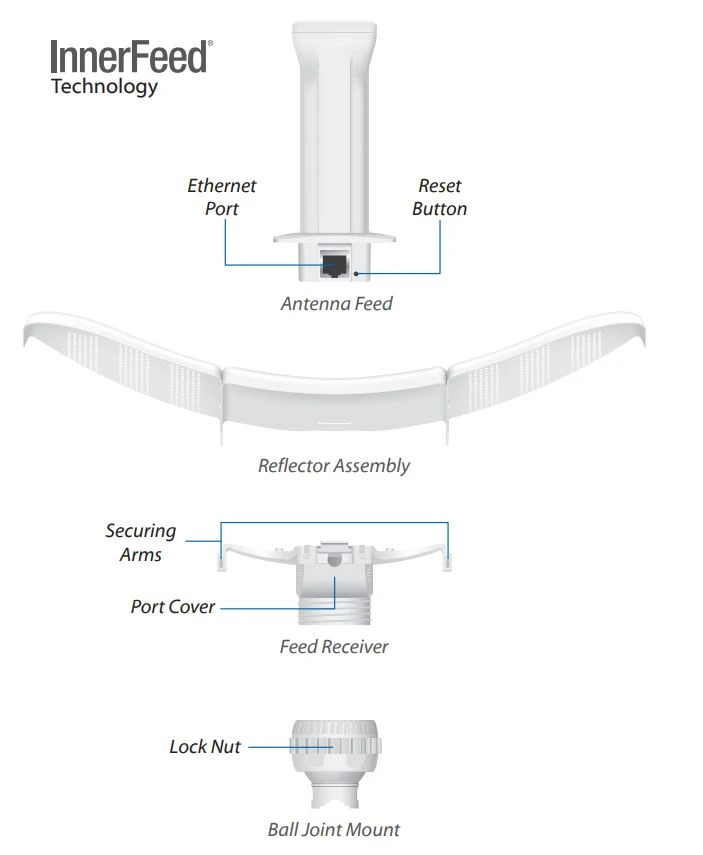

Ubiquiti LBE-M5-23 Ubiquiti WiFi Bridge is the latest installment of Ubiquiti devices, from the sensational airMAX series - technology dedicated to wireless networks. It is an 802.11a/n MIMO 1x1 radio system, working in 5GHz frequency band. The use of InnerFeed solution allowed to integrate the antenna with the radio module and active device.
High gain directional antenna

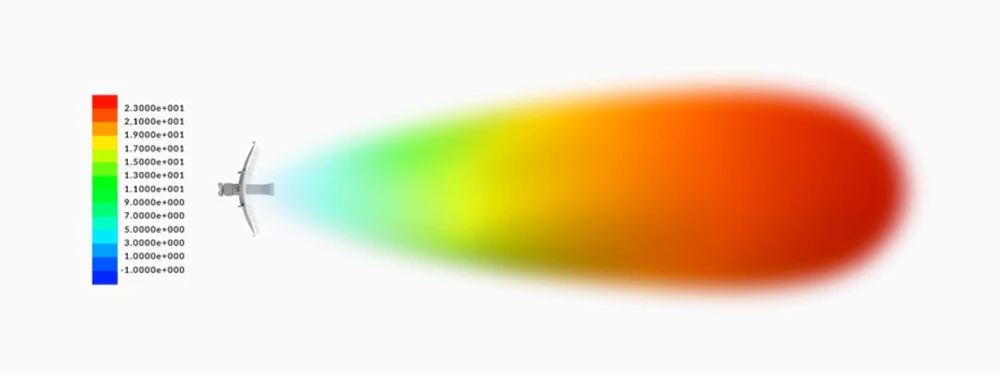

The LiteBeamM WiFi Bridge provides 23 dBi gain for long-distance links and uses a directional antenna pattern to increase resistance to interference.
Breakthrough industrial design

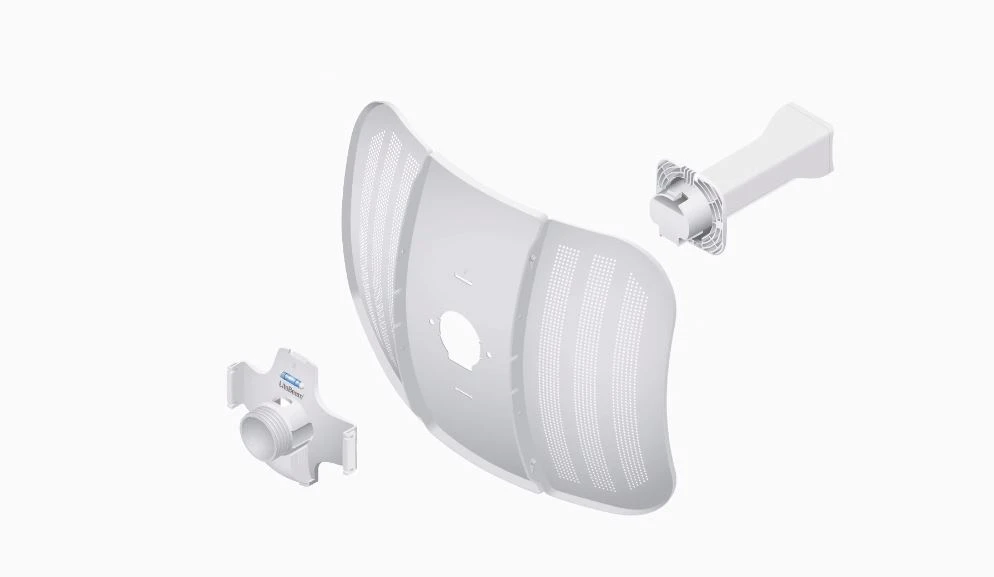

Thanks to the freedom of triaxial alignment the LiteBeamM bridge can be mounted in seconds - no tools are needed. Only one wrench is needed to mount it on a pole.
Compact size

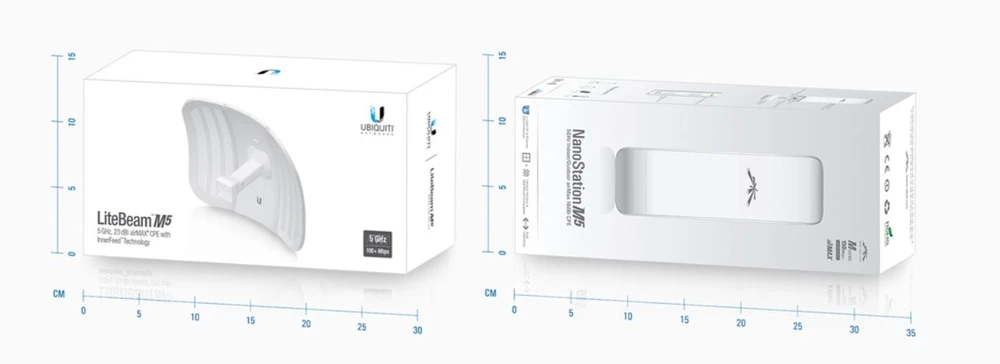

LiteBeamM is a lightweight form contained in an ultra-compact package, ideal for transport and logistics.
LiteBeam M5 works in Router or Bridge modes. The WiFi interface supports the Client, WDS Client modes.
The device is compatible with the AirMax protocol, which allows to eliminate the problem of hidden stations by assigning time slots (TDMA) to the devices, where collision-free transmission is possible. It allows to use maximum throughput, even with dozens of client stations connected to an Access Point.
----------------
| Number of LAN ports | 1x 10/100BaseTX (RJ45) |
| Operating frequency | 5 GHz |
| AC input voltage | 24 |
| Antenna gain | 21dBi - 30dBi |
| Antenna gain level (max) | 23 |
| Certification | FCC, IC, CE, RoHS |
| Connectivity technology | Wired |
| Device type | Client device |
| Dimensions (WxDxH) | 362 x 267 x 184 |
| Frequency band | 5.15 - 5.875 |
| Harmonized System (HS) code | 85176990 |
| Internal memory | 64 |
| LED indicators | Yes |
| Maximum data transfer rate | 100 |
| MIMO Type | 1x1 |
| Networking standards | IEEE 802.11n |
| Numbers of pieces in the package | 1-pack |
| Operating relative humidity (H-H) | 5 - 95 |
| Operating temperature (T-T) | -40 - 70 |
| Power over Ethernet (PoE) | Yes |
| Power supply | 5.5 |
| Product colour | White |
| Product type | 1x1 SISO |
| Type of device power supply | Passive PoE |
| Weight | 750 |
