Small footprint for flexible deployment
The airFiber X device together with the airFiber X antenna can be used as a high quality endpoint, point to point bridge (PtP) or backhaul connection. AirFiber X supports diagonal polarization ± 45° to increase interference immunity and use SNR. Compounding execution means that airFiber X can be mounted on the Ubiquiti directional antenna without the need for additional tools.
Plug and Play function
Advanced radio signal isolation

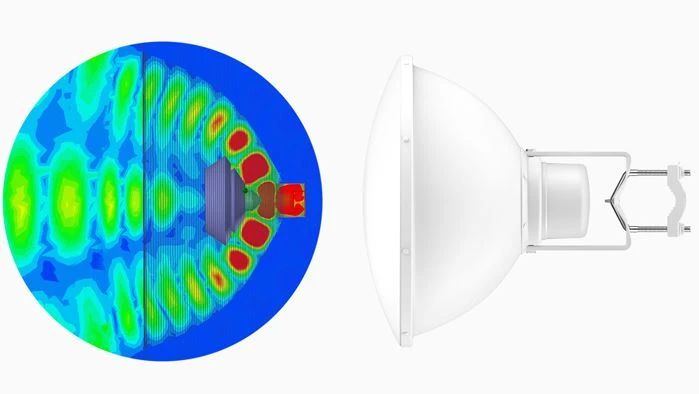

Ubiquiti AF-5G34-S45 is a special directional antenna, operating in the 5GHz frequency band and with a gain of 34dBi. The radiation characteristics of the directional antenna guarantees the highest possible signal-to-noise ratio (SNR) and high resistance to interference from other devices. The AIRFIBER DISH is designed to provide users with reliable connections and high performance.
----------------
| Antenna frequency | 5 GHz |
| Antenna type | Directional |
| Energy gain | >31 dBi |
| Antenna gain level (max) | 34 |
| Application | Outdoor |
| Compatible products | AF-5X |
| Compatible with brand | Ubiquiti |
| Cross polarization isolation | >35 dB |
| Depth | 421 |
| Diameter | 105 |
| Frequency band | 5.1 - 5.8 |
| Front to back ratio | 42 |
| Front-to-back ratio | 42 dB |
| Harmonized System (HS) code | 85177100 |
| Height | 1050 |
| Horizontal beam width (5 GHz) | 3 |
| Horizontal beamwidth | 3° |
| Isolation | 34 |
| Polarization | Double linear |
| Polarization | Dual polarization |
| Product colour | White |
| Quantity per pack | 1 |
| Quick installation guide | Yes |
| Survival wind speed | 200 |
| Vertical beam width (5 GHz) | 3 |
| Vertical beamwidth | 3° |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| VSWR | 1.4:1 |
| Weight | 13.5 |
| Width | 1050 |
