Breakthrough transmission performance
The next generation of 2x2 MIMO sector antennas from Ubiquiti Networks, airMAX ac sector antennas have better scalability, interference isolation and beam performance. For best performance, connect the antenna with a Rocket radio. Antennas are also compatible with RocketM5 models. However, AC operation requires Rocket5ac. The Ubiquiti antenna operates at 5GHz which allows for fast communication.
Immunity against interference
Sector antennas are very resistant to interference. The innovative deflector design with lowered side and back leaves reject interference from other transmitters in the vicinity potentially on the same tower.
High performance wireless transmission
The signal-to-noise ratio (S/N or SNR) has been improved, it is possible to use higher order modulation, for example 256QAM instead of 16QAM. This increases the number of bits per second for a band with constant data rate.
Rugged construction
Due to its innovative design, AirMax Sector ac provides higher profit and high performance. The airMAX ac antennas are designed for outdoor applications. Antennas are designed to reject interference and provide increased scalability, higher gain and high beam performance in PTMP networks. They use AirMax technology to provide high performance and power.
Easy Plug and Play installation

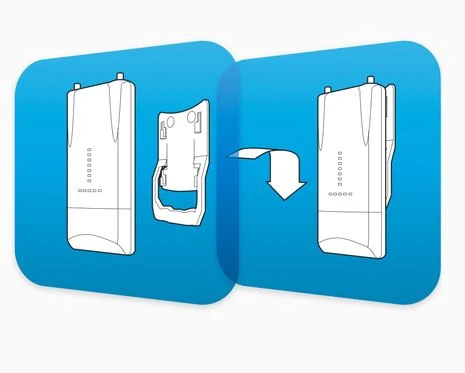

Every Ubiquiti airMAX ac sector antenna has a built-in Rocket handle, so no tools are needed to install the Rocket BaseStation.
----------------
| Antenna frequency | 5 GHz |
| Antenna type | Sector |
| Energy gain | 21dBi - 30dBi |
| Antenna gain level (max) | 21 |
| Application | Outdoor |
| Compatible with brand | Ubiquiti |
| Cross polarization isolation | >25 dB |
| Depth | 78 |
| Electric deviation | 2° |
| Frequency band | 5.1 - 5.8 |
| Harmonized System (HS) code | 85177100 |
| Height | 750 |
| Horizontal beam width | 60 |
| Horizontal beamwidth | 60° |
| Mounting | Wall |
| Polarization | Double linear |
| Polarization | Dual polarization |
| Product colour | White |
| Quantity per pack | 1 |
| Vertical beam width | 60 |
| Vertical beamwidth | 60° |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| VSWR | 1.5:1 |
| Weight | 4.8 |
| Width | 173 |
