Breakthrough 2x2 bipolar design
AirMax Omni is an omnidirectional antenna with vertical and horizontal dual polarization with 10dBi gain, designed for the 2.4GHz band. The antenna is designed to integrate seamlessly with RocketM radio, with which it can create a powerful omnidirectional base station with 360° coverage while maintaining high network performance. Omnidirectional antenna Ubiquiti airMAX OMNI AMO-2G10, thanks to its omnidirectional radiation characteristics allows to build a very efficient and relatively cheap base station.
Powerful coverage in all directions
The AMO-2G10 antenna is characterized by signal emission in all directions with the same power. The product is also distinguished by its operation in the frequency band 2.4GHz and maximum gain level 10dBi.
Robust construction
AirMAX antennas are designed for mechanical construction for outside applications.
Plug and Play integration

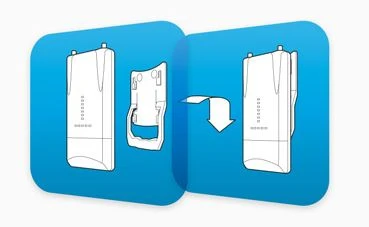

Each airMAX antenna has a built-in Rocket holder, so no tools are needed to install the Rocket BaseStation.
----------------
| Antenna frequency | 2.4 GHz |
| Antenna type | Omnidirectional |
| Energy gain | 10dBi - 20dBi |
| Antenna gain level (max) | 10 |
| Antenna type | Sector antenna |
| Application | Outdoor |
| Certification | EN 302 326 DN2 |
| Compatible with brand | Ubiquiti |
| Connector type | 2x RP-SMA |
| Cross polarization isolation | >25 dB |
| Depth | 122 |
| Electric deviation | 4° |
| Frequency band | 2.35 - 2.55 |
| Harmonized System (HS) code | 85177100 |
| Height | 84 |
| Horizontal beam width (2.4 GHz) | 12 |
| Horizontal beamwidth | 360° |
| MIMO Type | 2x2 |
| Mounting | Wall |
| Polarization | Double linear |
| Polarization | Dual polarization |
| Product colour | White |
| Purpose | Outdoor |
| Quantity per pack | 1 |
| Vertical beam width (2.4 GHz) | 4 |
| Voltage Standing Wave Ratio (VSWR) | 1.7:1 |
| VSWR | 1.7:1 |
| Weight | 2.1 |
| Width | 1030 |
